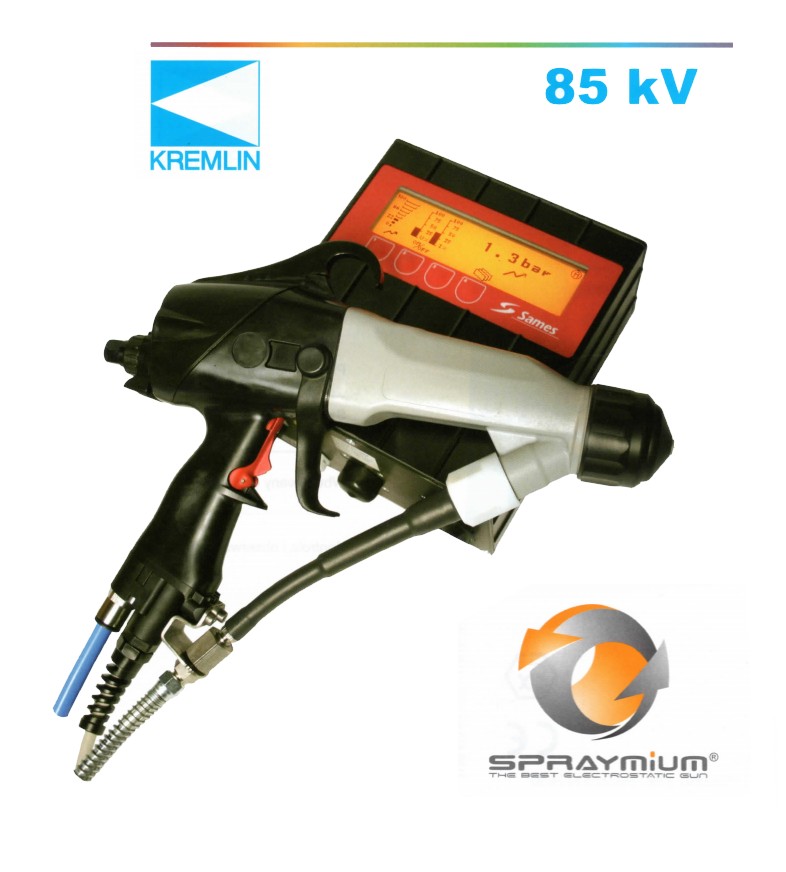

Pistolet Spraymium® łączy ergonomię, wydajność i niezawodność.
Jest przeznaczony dla firm, pragnących rozwijać procesy aplikacji farb poprzez ułatwianie pracy operatorom. Ten bardzo lekki pistolet posiada wbudowany układ sterowania, pozwalający operatorowi na wybór jednej z trzech zaprogramowanych charakterystyk napięciowych. Wersja niskociśnieniowa oferuje możliwość wyboru pomiędzy płaskim strumieniem i strumieniami wirującymi (Vortex i SuperVortex). Wersja AlRMIX® oferuje wybór pomiędzy płaskim strumieniem a strumieniem pierścieniowym (hollow cone). Zgodny z dyrektywą ATEX: |
| |
| CHARAKTERYSTYKA: |
- Wbudowany generator HT
- Szeroki wybór aplikacji
- Sterownik napięcia z wbudowanym układem bezpieczeństwa
- Przewód materiału ze złączką obrotową
- Szybkie odłączanie przewodu powietrznego
- Wbudowany czujnik ciśnienia
- Kontrola i obserwacja poziomu napięcia |
| |
KORZYŚCI:
|
- Łatwy do odłączenia przewód niskiego napięcia, prosty w obsłudze
- Do wielu rodzajów produktów
- Ustawienia efektu elektrostatycznego dla malowanych części i rozpylanego materiału
- Redukcja zmęczenia i doskonałe warunki pracy dla zwiększenia
- Łatwa konserwacja
- Rejestracja preferowanych ustawień dla osiągnięcia powtarzalności
- Przyjazny dla obsługującego |
| |
Po prostu najlepszy pistolet elektrostatyczny Spraymium 85kV |
- Wysokiej jakości natrysk: Vortex i AIRMIX®
- Ergonomia, wygoda i prosta obsługa
- Oszczędność czasu i farby |
| |
| Pistolet Spraymium® łączy ergonomię, wydajność i niezawodność. Jest przeznaczony dla firm, pragnących rozwijać procesy aplikacji farb poprzez ułatwianie pracy operatorom. Ten bardzo lekki pistolet posiada wbudowany układ sterowania, pozwalający operatorowi na wybór jednej z trzech zaprogramowanych charakterystyk napięciowych. Wersja niskociśnieniowa oferuje możliwość wyboru pomiędzy płaskim strumieniem i strumieniami wirującymi (Vortex i SuperVortex). Wersja AIRMIX® oferuje wybór pomiędzy płaskim strumieniem a strumieniem pierścieniowym (hollow cone). |
| |
| Wbudowany generator HT |
Łatwy do odłączenia przewód niskiego napięcia, prosty w obsłudze |
| Szeroki wybór aplikacji |
Do wielu rodzajów produktów |
| Sterownik napięcia z wbudowanym układem bezpieczeństwa |
Ustawienia efektu elektrostatycznego dla malowanych części i rozpylanego materiału |
| Przewód materiału ze złączką obrotową |
Redukcja zmęczenia i doskonałe warunki pracy dla zwiększenia wydajności |
| Szybkie odłączanie przewodu powietrznego |
Łatwa konserwacja |
| Wbudowany czujnik ciśnienia |
Rejestracja preferowanych ustawień dla osiągnięcia powtarzalności |
| Kontrola i obserwacja poziomu napięcia |
Przyjazny dla obsługującego |
|
| |
 |
| |
| Sames by EXEL is pleased to announce the release of the new Airmix® Spraymium Electrostatic Spray gun! The Spraymium® is ideal for high and low pressure applications spraying solvent and water-based paints. It is connected to the SPRAYBOX® control module with an electro-pneumatic coupling. |
| |
| CUSTOMER BENEFITS |
- Unsurpassed Finish Quality
- Cuts Paint Costs
- Cuts Waste & Filter Costs
- Cuts Production Costs
- Ergonomically Balanced
- Easy To Operate |
| |
| The new SPRAYMIUM® paint gun is designed for spraying solvent or water-based paint. It is connected to the SPRAYBOX® control module with an electropneumatic coupling. The Airmix® Spraymium® gun delivers an adjustable flat spray pattern. There are a number of different fluid tips available to provide various levels of flow rates and pattern sizes (see chart on page 3). The SPRAYBOX® control module supplies power to the gun. It manages trigger actions, controls the voltage levels, manages preset parameters, and contains the on/off controls. The voltage preset can be selected on the Spraymium® gun or SPRAYBOX®. |
| |
| ADVANTAGES |
| |
| UNSURPASSED FINISH QUALITY |
- Airmix performance delivers a fine finish with less overspray
- Actual atomizing air pressure is displayed on the SPRAYBOX ® The readout provides consistent repeatability
- Lower air pressure requirements translate to higher transfer efficiency
- State-of-the-art controller provides optimum voltage for charging paint and minimizes “Faraday Cage Effect”
- Pre-set voltage levels are activated from the spray gun |
| |
| ERGONOMIC DESIGN |
- Form fitted gun grip
- Well balanced spray gun
- Light weight and flexible hoses
- Low voltage cable & hoses can be disconnected at gun handle |
| |
| EASY TO OPERATE |
- Combined air and fluid adjustment allows painter to change from wide to narrow fan pattern by turning just one knob
- Digital controller can be set up in minutes
- Single button voltage control with easy to read LED on the spray gun
- On/Off switch on gun |
| |
| VERSATILITY |
* Convertible to Airspray low pressure atomization
* Units available for solvent or waterborne paints
* Fan spray pattern with easy adjustment |
| |
 |
| |
| THE POWER OF ELECTROSTATIC |
Electrostatic spraying is the application of negatively charged ions to paint particles. The negative charge tracks the paint particles to a grounded part which increases the transfer efficiency and reduces material waste. The Spraymium® incorporates Kremlin’s industry leading Airmix® technology to deliver: |
- Outstanding Finish Quality
- Increased Productivity
- Paint Savings
- Reduced Booth Maintenance
- A Green EnvironmentThe new Spraymium® Airmix® gun is available in packages with the Kremlin pump line |
| |
| The new Spraymium®Airmix®technology to deliver: gun is available in packages with the Kremlin pump line. |
| |
| high Voltage Unit |
| Output voltage: |
85 kV max.(adjustable via Spraymium®and SPRAYBOX®) |
| Output current: |
100 μA max. |
| SPRAYBOX®control Module |
| Electrical power supply: |
110/220V |
| Max. supply current |
1 amp |
| Max. pressure |
90 psi / 6 bar |
| Installation |
Non hazardous area |
| Compressed Air |
| Air requirements |
Clean, dry particle free air |
| Hose Type |
| LR (Low Resistivity) (.5 Ohms or greater) |
32’, 50’, 65’,98’ ft hoses available |
| HR (High Resistivity) (5 Ohms or greater) |
32’, 50’, 65’,98’ ft hoses available |
| Hose diameter |
3/16 inches |
|
| |
| HP (HIGH PRESSURE) SPRAY |
| |
| Description: |
SX120 |
SX200 |
| Max. paint intake pressure: |
1800 psi (120 bar)
|
3000 psi (200 bar) |
| Max. paint flow rate: |
|
23.7 oz/mn(700 cm3/mn) |
| 25s AFNOR cup 4 |
≤ 40 seconds |
| Spray width |
5.9 - 13.7 inches / (15-35 cm) |
| Air flow rate |
4.7 cfm |
| Air hose coupling |
Quick coupling for 10 mm |
| Fluid inlet fitting |
diameter air hose |
| weight |
#5 JIC-M |
| (not including cables or hoses) |
1.9 lbs / (880g) |
|
| |
 |
| |
| SPRAYBOX |
| Display size dimensions |
5.2 x 1.5 inches LED back-lit |
| The front panel of the module has four buttons |
Icons displayed above the buttons shows the
function assigned to each button |
|
| |
 |
| |
Airmix® Tip selection chart for spraymium® airmix® guns |
| |
Tip
Size |
water output |
Diameter |
Screen Sizes |
| 300 psi(20 bar) |
500 psi(35 bar) |
750 psi(50 bar) |
Gun Filter |
pump Filter |
| oz/mn |
l/mn |
oz/mn |
l/mn |
oz/mn |
l/mn |
inches |
mm |
Mesh |
Filter # |
Mesh |
Filter # |
| 6 |
5 |
0,15 |
7 |
0,21 |
10 |
0,3 |
0,011 |
0,28 |
140 |
4 |
140 |
4 |
| 9 |
7 |
0,21 |
10 |
0,3 |
15 |
0,44 |
0,013 |
0,33 |
80 |
6 |
80 |
6 |
| 12 |
9 |
0,27 |
12 |
0,35 |
18 |
0,53 |
0,015 |
0,38 |
80 |
6 |
70 |
8 |
| 14 |
10 |
0,3 |
13 |
0,38 |
23 |
0,68 |
0,016 |
0,41 |
50 |
12 |
50 |
12 |
| 20 |
13 |
0,38 |
17 |
0,5 |
33 |
0,98 |
0,019 |
0,5 |
50 |
12 |
50 |
12 |
|
| |
| Average width of a fan pattern at 10”(3.94cm) |
| Tip Size |
6”(2.36 cm) |
8”(3.15 cm) |
9”(3.54 cm) |
11”(4.33 cm) |
12”(4.72 cm) |
14”(5.51 cm) |
| 6 |
6-07 |
6-09 |
6-11 |
1-06 |
1-06 |
--- |
| 9 |
9-07 |
9-09 |
9-11 |
1-09 |
1-09 |
--- |
| 12 |
12-07 |
12-09 |
12-11 |
1-12 |
1-12 |
1-12 |
| 14 |
--- |
14-09 |
14-11 |
14-13 |
14-15 |
14-17 |
| 20 |
--- |
20-09 |
20-11 |
20-13 |
20-15 |
20-17 |
|
| |
| To determine the tip part number, replace the X’s in the part number 134-5XX-XX9 with the tip part number. Example to order a 09-11 tip, order by part number 134-509-119 |
| |
| All gun kits include: Spraymium® gun, tool kit, choice of low resistivity or high resistivity hose and hose length, and SPRAYBOX® power supply. |
| |
HR = High Resistivity
LR = Low Resistivity
SX200 = 200 bar/2900 psi
SX120 = 120 bar/1740 psi |
| |
| 910004888-102 GUN, |
SPRAYMIUM® AIRMIX®, 10M CABLE/HOSE, SX200 BAR, HIGH RESISTIVITY HOSE |
| 910004888-152 GUN, |
SPRAYMIUM® AIRMIX®, 15M CABLE/HOSE, SX200 BAR, HIGH RESISTIVITY HOSE |
| 910004888-202 GUN, |
SPRAYMIUM® AIRMIX®, 20M CABLE/HOSE, SX200 BAR, HIGH RESISTIVITY HOSE |
| 910004888-302 GUN, |
SPRAYMIUM® AIRMIX®, 30M CABLE/HOSE, SX200 BAR, HIGH RESISTIVITY HOSE |
| 910005781-102 GUN, |
SPRAYMIUM® AIRMIX®, 10M CABLE/HOSE, SX200 BAR, LOW RESISTIVITY HOSE |
| 910005781-152 GUN, |
SPRAYMIUM® AIRMIX®, 15M CABLE/HOSE, SX200 BAR, LOW RESISTIVITY HOSE |
| 910005781-202 GUN, |
SPRAYMIUM® AIRMIX®, 20M CABLE/HOSE, SX200 BAR, LOW RESISTIVITY HOSE |
| 910005781-302 GUN, |
SPRAYMIUM® AIRMIX®, 30M CABLE/HOSE, SX200 BAR, LOW RESISTIVITY HOSE |
| 910007016-102 GUN, |
SPRAYMIUM® AIRMIX®, 10M CABLE/HOSE, SX120 BAR, HIGH RESISTIVITY HOSE |
| 910007016-152 GUN, |
SPRAYMIUM® AIRMIX®, 15M CABLE/HOSE, SX120 BAR, HIGH RESISTIVITY HOSE |
| 910007016-202 GUN, |
SPRAYMIUM® AIRMIX®, 20M CABLE/HOSE, SX120 BAR, HIGH RESISTIVITY HOSE |
| 910007016-302 GUN, |
SPRAYMIUM® AIRMIX®, 30M CABLE/HOSE, SX120 BAR, HIGH RESISTIVITY HOSE |
| 910007017-102 GUN, |
SPRAYMIUM® AIRMIX®, 10M CABLE/HOSE, SX120 BAR, LOW RESISTIVITY HOSE |
| 910007017-152 GUN, |
SPRAYMIUM® AIRMIX®, 15M CABLE/HOSE, SX120 BAR, LOW RESISTIVITY HOSE |
| 910007017-202 GUN, |
SPRAYMIUM® AIRMIX®, 20M CABLE/HOSE, SX120 BAR, LOW RESISTIVITY HOSE |
| 910007017-302 GUN, |
SPRAYMIUM® AIRMIX®, 30M CABLE/HOSE, SX120 BAR, LOW RESISTIVITY HOSE |
|
| |
| The LEDs allow the user to see the program in use. These pre-programmed settings can be modified by the operator in order to better adapt to the types of parts to be painted. SPRAYMIUM® combines innovation and experience of both SAMES & KREMLIN brands: The range gives access to Low Pressure and high pressure spraying technologies and to the Vortex and AIRMIX® qualities which are guarantees of high quality for industrial finishing. A pressure sensor integrated in the gun permits a real-time air flow measurement, what helps to make a very precise adjustment and to ensure a perfect daily repeatability. This innovation is patented and exclusive for SPRAYMIUM®. Technologies concentrate for a high quality finishing. |
| |
| |
High pressure nozzles: AIRMIX® and Hollow Cone |
| |
Low Pressure nozzles:
- Fan spray & Round spray
- HVLP fan spray
- Vortex & Super Vortex Spray
|
| |
3 pre-programmed voltage levels adjustable by operator |
| |
Spray control module:intuitive and easy to use |
|
| |
 |
1 - New generation of high-voltage cascade, 85 kv for a high electrostatic charge
2 - Integrated pressure sensor
3 - Control and visualisation of high voltage level
4 - Wuick adjust of paint pattern
5 - Comfortable to handle
6 - Easy and quick disconnect of the flexible air pipe
7 - Quick and easy lock of trigger
8 - Ergonomics design
9 - Swivel fitting of paint hose |
| |
SPRAYMIUM® LOW PRESSURE SPRAY GUN |
| The Spraymium gun associates ergonomy, fiability and application performances. It's dedicated to companies interested in the process improvement by facilitating the operator work. It's light and a controls and value display is integrated in the gun which allow the operator to choose between 3 preset voltage levels. The low pressure version is avaiblable in flat or hollow cone fan type. |
| |
| Specyfications |
| |
| Fan type |
Super Vortex |
Super Vortex |
Flat |
| Standard head |
SSV08 |
SSV12 |
SP |
| Product pressure (bar) |
8 bar |
8 bar |
8 bar |
| Air inlet pressure |
6 bar -+ 1 bar |
6 bar -+ 1 bar |
6 bar -+ 1 bar |
| Temperature (ambient) |
0°C - 40°C |
0°C - 40°C |
0°C - 40°C |
| Fluid output (cc/mn) |
650 |
750 |
750 |
| Spray pattern width |
35 cm |
40 cm |
18-47 |
| Air flow |
7,5 - 17 |
9 - 23 |
12 - 25 |
| Fluid viscosity |
14 s. - 40 s. |
14 s. - 40 s. |
14 s. - 40 s. |
| Ground |
880 g. |
880 g. |
880 g. |
| Output KV |
85 kV maxi.(+0kV; 15kv) adjustable in
Spraymium or Spraybox |
85 kV maxi.(+0kV; 15kv)adjustable in Spraymium or Spraybox |
85 kV maxi.(+0kV;15kv) adjustable in
Spraymium or Spraybox |
| Output current |
100 μA maxi. |
100 μA maxi. |
100 μA maxi. |
Air connection on the
handle |
F 1/4 NPS |
F 1/4 NPS |
F 1/4 NPS |
| Quick air fitting for |
ø 8mm |
ø 8mm |
ø 8mm |
| Paint Connection type |
M 1/2 JIC |
M 1/2 JIC |
M 1/2 JIC |
|
| |
Configuration of the SPRAYMIUM LOW pressure spray gun |
| |
| Description |
Resistivity range (M1.cm) |
Fan shape |
Tip Size (mm) |
Part number |
| SPRAYMIUM® SSV08 LP HR JR |
5 - 500 |
Round fan (Super Vortex) |
8 |
910.004.885 |
| SPRAYMIUM® SSV12 LP HR JR |
5 - 500 |
Round fan (Super Vortex) |
12 |
910.004.883 |
| SPRAYMIUM® SP LP HR JP |
5 - 500 |
Flat Fan |
JP |
910.004.884 |
| SPRAYMIUM® SSV08 LP LR JR |
0,5 |
Round fan (Super Vortex) |
8 |
910.005.778 |
| SPRAYMIUM® SSV12 LP LR JR |
0,5 |
Round fan (Super Vortex) |
12 |
910.005.776 |
| SPRAYMIUM® SP LP LR JP |
0,5 |
Flat Fan |
JP |
910.005.777 |
|
| |
| Spraybox control box part Numbers |
| |
| Description |
Part number |
| SprayBox control Box |
110.000.3521 |
| SprayBox control Kit |
910.005.759 |
|
| |
| Fluid hoses for HR and LR |
| |
| Description |
Resistivity range (MΩ.cm) |
Fluid, Filling |
Length (m) |
Part number |
| LR HP 0 4,8 fluid hose |
≥ 0.5 |
FF 1/ 2 JIC |
10 |
910.002.417 |
| HR fluid hose supplied with gun |
5-500 |
FF 1/ 2 JIC |
(1) |
- |
|
| |
| HR Fluid hoses extensions part numbers |
| |
| Description |
length (m) |
Part number |
| Flex hose Ω 6.3 PA grey 120 bar 1/2 JIC |
10 |
050.450.707 |
| Flex hose Ω 6.3 PA grey 120 bar 1/2 JIC |
15 |
050.450.709 |
| Flex hose Ω 6.3 PA grey 120 bar 1/2 JIC |
20 |
050.450.708 |
|
| |
| Electro-Pneumatic coupling sets (LR and HR versions) |
| |
| Description |
length (m) |
Part number |
| Electro-pneumatic coupling sets HR- LR10 |
10 |
910.003.61910 |
| Electro-pneumatic coupling sets HR- LR15 |
15 |
910.003.61915 |
| Electro-pneumatic coupling sets HR- LR20 |
20 |
910.003.61920 |
|
| |
| Paint hoses kits with extensions for LR |
| |
| Description |
length (m) |
Part number |
| Paint hoses kits with extensions |
15 |
910.006.398 |
| Paint hoses kits with extensions |
20 |
910.006.463 |
|
| |
Spraymium gun kits |
| |
| Kit designation |
Resistivity range (MΩ.cm) |
Fan shape |
Tip size (mm) |
Hoses length (m) |
Kit Part number |
| SPRAYMIUM® HR gun complete kit with SPRAYBOX |
5-500 |
Round fan (Super Vortex) |
8 |
10 |
910.004.88510 |
| SPRAYMIUM® HR gun complete kit with SPRAYBOX |
5-500 |
Round fan (Super Vortex) |
8 |
15 |
910.004.88515 |
| SPRAYMIUM® HR gun complete kit with SPRAYBOX |
5-500 |
Round fan (Super Vortex) |
8 |
20 |
910.004.88520 |
| SPRAYMIUM® HR gun complete kit with SPRAYBOX |
5-500 |
Round fan (Super Vortex) |
12 |
10 |
910.004.88310 |
| SPRAYMIUM® HR gun complete kit with SPRAYBOX |
5-500 |
Round fan (Super Vortex) |
12 |
1S |
910.004.88315 |
| SPRAYMIUM® HR gun complete kit with SPRAYBOX |
5-500 |
Round fan (Super Vortex) |
12 |
20 |
910.004.88320 |
| SPRAYMIUM® HR gun complete kit with SPRAYBOX |
5-500 |
Flat fan |
1S |
10 |
910.004.88410 |
| SPRAYMIUM® HR gun complete kit with SPRAYBOX |
5-500 |
Flat fan |
1S |
1S |
910.004.8841S |
| SPRAYMIUM® HR gun complete kit with SPRAYBOX |
5-500 |
Flat fan |
15 |
20 |
910.004.88420 |
| SPRAYMIUM® LR gun complete kit with SPRAYBOX |
0.5-500 |
Round fan (Super Vortex) |
8 |
10 |
910.005.77810 |
| SPRAYMIUM® LR gun complete kit with SPRAYBOX |
0.5-500 |
Round fan (Super Vortex) |
8 |
15 |
910.005.77815 |
| SPRAYMIUM® LR gun complete kit with SPRAYBOX |
0.5-500 |
Round fan (Super Vortex) |
8 |
20 |
910.005.77820 |
| SPRAYMIUM® LR gun complete kit with SPRAYBOX |
0.5-500 |
Round fan (Super Vortex) |
12 |
10 |
910.005.77610 |
| SPRAYMIUM® LR gun complete kit with SPRAYBOX |
0.5-500 |
Round fan (Super Vortex) |
12 |
15 |
910.005.77615 |
| SPRAYMIUM® LR gun complete kit with SPRAYBOX |
0.5-500 |
Round fan (Super Vortex) |
12 |
20 |
910.005.77620 |
| SPRAYMIUM® LR gun complete kit with SPRAYBOX |
0.5-500 |
Flat fan |
15 |
10 |
910.005.77710 |
| SPRAYMIUM® LR gun complete kit with SPRAYBOX |
0.5-500 |
Flat fan |
1S |
1S |
910.005.77715 |
| SPRAYMIUM® LR gun complete kit with SPRAYBOX |
0.5-500 |
Flat fan |
15 |
20 |
910.005.77720 |
|
| |

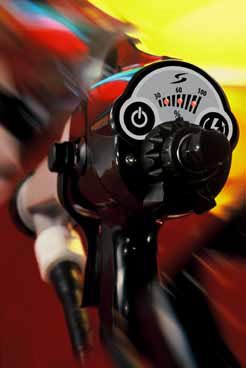

| SPRAYMIUM® HIGH PRESSURE SPRAY GUN |
| The Spraymium® gun associates ergonomy, fiability and application performances. lt's dedicated to companies interested in the process improvement by facilitating the operator wark. lt's lig h t and a controls and value display is integrated in the gun which allow the operator to choose between 3 preset voltage levels. The AIRMIX® version is avaiblable in fan or round spray. |
| |
| FEATURES |
BENEFITS |
| Built-in HT generator |
Removable low voltage eable and user-friendly operatlon |
| Wide range available |
For a larg e range of material s |
| Adjustable tension with Integrated safety circuit |
Adjustment of the electrostatic effect to the part to be painted and the fluid sprayed |
| Product swivel fitting |
Reduced fatigue and excellent working conditions for increased productivity |
| Quick-diseonneet flexible air hose |
Quick maintenance |
| Built-in pressure sensor |
Prefered settings reeording for a perfect repeatability |
| Controls and voltage value display |
User friendly |
|
| |
| Configuration of the electrostatic SPRAYMIUM® gun |
| |
| Description |
Resistivity range (MΩ.cm) |
Fan shape |
Aircap |
Tips size(mm) |
Part number |
| SPRAYMIUM® SX120 HP HR JP |
5- 500 |
Flat fan |
X 14 |
09.139 |
910.007.016 |
| SPRAYMIUM® SX200 HP HR JP |
5- 500 |
Flat fan |
X 14 |
09.139 |
910.004.888 |
| SPRAYMIUM® SX120 HP LR JP |
0.5- 500 |
Flat fan |
X 14 |
09.139 |
910.007.017 |
| SPRAYMIUM® SX200 HP LR JP |
0.5 - 500 |
Flat fan |
X 14 |
09.139 |
910.005.781 |
|
| |
Spraybox control Box |
| |
| Description |
Part number |
| SPRAYBOX control box |
110.000.352 |
| SPRAYBOX mounting kit |
910.005.759 |
|
| |
| Fluid Hoses for HR and LR |
| |
| Description |
Resistivity range (MQ.cm) |
Fluid, Fliting |
Length (m) |
Part number |
| LR HP 0 4,8 fluid hose |
≥ 0.5 |
FF 1/2 JIC |
10 |
910.002.417 |
| HR fluid hose suppied with gun |
5-500 |
FF 1/2 JIC |
( 1 ) |
- |
|
| |
| HR Fluid Hoses Extensions Part Numbers |
| |
| Description |
Resistivity range (MΩ.cm) |
Fitting Product |
Length (m) |
Part number |
| Flexible hose Ω 4,8 PA blue 240 bar |
5 - 500 |
FF 1/2 JIC |
10 |
050.450.606 |
| Flexible hose Ω 4,8 PA blue 240 bar |
5 - 500 |
FF 1/2 JIC |
15 |
050.450.607 |
| Flexible hose Ω 4,8 PA blue 240 bar |
5 - 500 |
FF 1/2 JIC |
20 |
050.450.608 |
| Flexible hose Ω 4,8 PA blue 240 bar |
5 - 500 |
FF 1/2 JIC |
30 |
050.450.609 |
|
| |
| Paint Hoses Kits With Extensions for LR |
| |
| Description |
Resistivity range (MΩ.cm) |
Lenght (m) |
Part number |
| Paint hoses kits with extensions |
0.5 - 500 |
15 |
910.006.398 |
| Paint hoses kits with extensions |
0.5 - 500 |
20 |
910.006.463 |
|
| |
Electro-Pneumatic Coupling Sets (LR and HR Versions) |
| |
| Description |
Length (m) |
Part number |
| Electro-pneumatic coupling sets HR- LR10 |
10 |
910.003.61910 |
| Electro-pneumatic coupling sets HR- LR15 |
15 |
910.003.61915 |
| Electro-pneumatic coupling sets HR- LR20 |
20 |
910.003.61920 |
|
| |
| Spraymium |
| |
| Description |
Resistivity range (MΩ.cm) |
Fan shape |
Air - CAP |
Tip size (mm) |
Hoses length (m) |
Kit Part number |
| SPRAYMIUM® SX 120 gun complete kit with Spraybox |
5- 500 |
Flat fan |
X 14 |
09.139 |
10 |
910.007.01610 |
| SPRAYMIUM® SX 120 gun complete kit with Spraybox |
5- 500 |
Flat fan |
X 14 |
09.139 |
15 |
910.007.01615 |
| SPRAYMIUM® SX 120 gun complete kit with Spraybox |
5- 500 |
Flat fan |
X 14 |
09.139 |
20 |
910.007.01620 |
| SPRAYMIUM® SX 120 gun complete kit with Spraybox |
5- 500 |
Flat fan |
X 14 |
09.139 |
30 |
910.004.88830 |
| SPRAYMIUM® SX 200 gun complete kit with Spraybox |
5- 500 |
Flat fan |
X 14 |
09.139 |
10 |
910.004.88810 |
| SPRAYMIUM® SX 200 gun complete kit with Spraybox |
5- 500 |
Flat fan |
X 14 |
09.139 |
20 |
910.004.88820 |
| SPRAYMIUM® SX 200 gun complete kit with Spraybox |
5- 500 |
Flat fan |
X 14 |
09.139 |
30 |
910.004.88830 |
| SPRAYMIUM® SX 120 gun complete kit with Spraybox |
0.5- 500 |
Flat fan |
X 14 |
09.139 |
10 |
910.007.01710 |
| SPRAYMIUM® SX 120 gun complete kit with Spraybox |
0.5- 500 |
Flat fan |
X 14 |
09.139 |
20 |
910.007.01720 |
| SPRAYMIUM® SX 120 gun complete kit with Spraybox |
0.5- 500 |
Flat fan |
X 14 |
09.139 |
30 |
910.007.01730 |
| SPRAYMIUM® SX 200 gun complete kit with Spraybox |
0.5- 500 |
Flat fan |
X 14 |
09.139 |
10 |
910.005.78110 |
| SPRAYMIUM® SX 200 gun complete kit with Spraybox |
0.5- 500 |
Flat fan |
X 14 |
09.139 |
20 |
910.005.78120 |
| SPRAYMIUM® SX 200 gun complete kit with Spraybox |
0.5- 500 |
Flat fan |
X 14 |
09.139 |
30 |
910.005.78130 |
|
| |
Special tips with dielectric insert for SPRAYMIUM |
| |
| size |
Waler output in 1/mn
|
Ø equivalent (mm) |
Screen mark |
Average width of fan at 25 cm |
| 20bar |
35bar |
50bar |
gun filter |
pump filter |
number |
13 cm |
19 cm |
23 cm |
27 cm |
35 cm |
| 6 |
0.15 |
0.20 |
0.30 |
0.28 |
4 |
4 or 6 |
number marked on the tip |
06.079 |
06.099 |
06.119 |
06.139 |
|
| 9 |
0.20 |
0.30 |
0.45 |
0.33 |
6 |
6 or 8 |
number marked on the tip |
09.079 |
09.099 |
09.119 |
09.139 |
|
| 12 |
0.26 |
0.36 |
0.55 |
0.38 |
6 |
6 or 8 |
number marked on the tip |
|
12.099 |
12.119 |
12.139 |
|
| 14 |
0.30 |
0.40 |
0.70 |
0.41 |
6 |
8 or 12 |
number marked on the tip |
|
14.099 |
|
|
14.179 |
|
| |
|
| |
| |
| |
